首页 Home > 安全解决方案 Security Solution

- Solutions that automatically transform any standard SATA drive with any capacity to SED/FDE, Opal 2.0 drive, eDrive, or Microsoft EHDD.

- Solutions that allow users to manage their own KEYS and therefore, retain complete SECRETS.

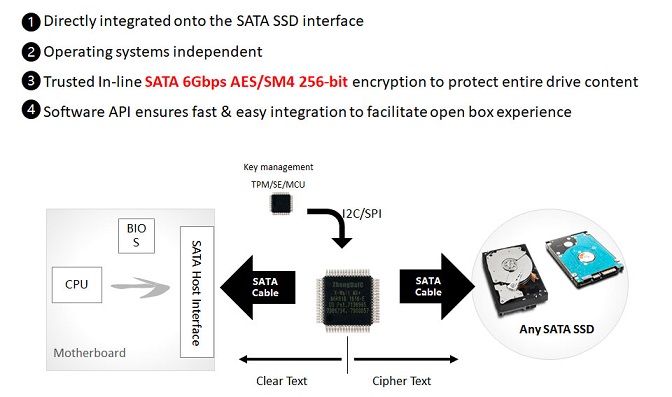

SATA-to-SATA加密：

　　SPELITE MX+/MX2可以应用在各种SATA接口下，用以实现SATA-to-SATA的高速加解密桥接。可以自动的转换任何SATA存储设备为SED/FDE、OPAL2.0盘、eDriver、微软Windows EHDD等；
　　SPELITE MX+/MX2提供I2C、SPI、SATA API等多种方式对接密钥管理的TPM、SE、MCU等各类密码管理芯片和PIN码输入；也支持通过加密、安全的HMAC、CMAC、RSA、SM2等方法导入密钥或PIN码。


应用解决方案

Solution 1 SATA-to-SATA加密桥板 通过桥接的形态将主机和SATA存储连接，主机数据通过桥板加密写入任何SATA存储，反向可解密；广泛应用于各类主机、加密设备的改造、升级。
Solution 2 SED/FDE加密SSD 在2.5"SSD或M.2的SATA存储设备上板载嵌入SPELITE MX+/MX2，即可实现标准的SED、FDE的SSD存储设备，可广泛使用在现行的各类SSD设备上。
Solution 3 加密数据盘 SPELITE MX+/MX2 Encrypted Data Drive Managed by ZhongDaIC OPAL2.0 Disk Manager：MX+/MX2 eDrive Controller automatically transforms any GENERIC SATA disk drive with any capacity into an Opal2.0 compliant data drive. Use the ZhongDaIC Opal2.0 Disk Manager utility to manage the encrypted disk drive.
Solution 4 加密OS盘(windows、linux...) SPELITE MX+/MX2 eDrive Controller automatically transforms any GENERIC SATA disk drive with any capacity into an Opal2.0 compliant OS drive which awaits the PRE-BOOT authentication to enable cryptographic booting on the drive.
1.OS on the disk drive is only allowed to boot upon pre-boot authentication. After successful booting, the disk drive then becomes visible and operable on the Disk Manager of the host computer. All data written is automatically encrypted at SATA in-line 6Gbps speed.
2.Invisible when there is no pre-boot authentication.
3.Consult us for an actual implementation.
Solution 5 Windows BitLocker eDriver Allow BitLocker to take advantages of the SPELITE MX+/MX2 eDrive Controller encrypted operating system drive capabilities:
1.Automatically transforms any GENERIC SATA disk drive with any capacity into Microsoft EHDD or eDrive.
2.Perform hardware-based SATA in-line 6Gbps AES CBC or XTS 256-bit encryption on the OS drive.
3.Streamline BitLocker configurations to save hours of painful software converting process.
4.Microsoft Windows 10 certified.
5.Can be a PIN authenticated encrypted OS drive.
Solution 6 流媒体加密 对视频、网络数据包、语音等各类流媒体进行实时高速加密。
1.应用于高清4K的视频会议，实时加解密，不增加服务器端负担，由各个视频终端上的SPELITE MX+/MX2完成实时加解密.
2.高速网络数据包加密，实时对网络数据包进行加密，服务器端和客户端都由硬件完成.
3.语音、视频等多媒体数据流的实时高速加密.
4.云端网盘、云存储实时加密存储.

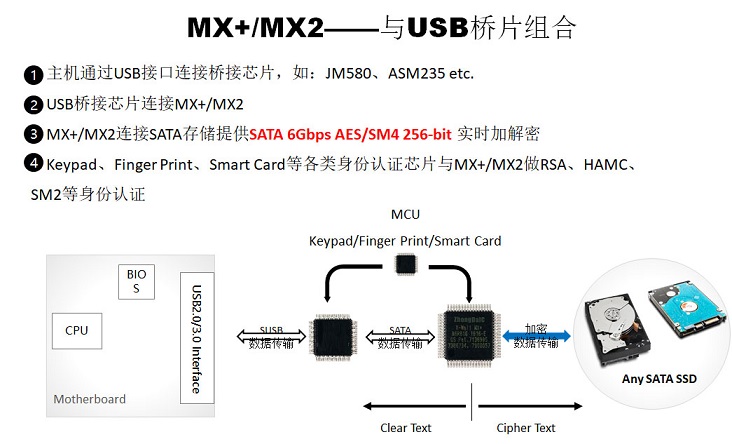

USB-to-SATA加密：

　　SPELITE MX+/MX2与USB-SATA转接桥片组合（如：JMS578/580、ASM235等），可以实现USB接口的移动存储装置加密，也可以自动的转换任何SATA存储设备为FFE、FDE、OPAL2.0数据盘、eDriver、微软Windows EHDD等；
　　SPELITE MX+/MX2与USB-SATA桥接芯片的组合可以实现Keypad、FingerPrint、SamrtCard、APP以及2种组合的双要素认证的USB安全移动存储装置。


应用解决方案

Solution 1 加密U盘 各类加密U盘，支持FFE、FDE、按键、指纹、PIN码等各类身份认证。
Solution 2 加密USB移动存储 各类加密USB移动存储，支持BitLocker数据盘、OPAL、FDE，支持Smart Card、IC卡、按键、指纹、PIN码等各类身份认证。
Solution 3 USB Interfaced Single Factor Unlock PIN MX+/MX2 awaits the Unlock PIN authentication (SATA host HMAC method) from the host computer to enable cryptographic operation.
1.Disk drive is visible on the Disk Manager of the host computer and can be normally operated when the correct Unlock PIN is presented. All data written is automatically encrypted at SATA in-line 6Gbps speed.
2.Visible but not operable when no Unlock PIN is presented.
3.None operable when the Unlock PIN is not authenticated. The Unlock PIN dominates thus must be entered to authenticate.
Solution 4 Enigma3.0/4.0 Data-In-Motion Encryption Using Enigma 3.1 CloudKey.
Solution 5 Enigma 3.0/4.0 RSA/ECC CloudKey Deploy RSA2048/ECC DSA to perform FDE/SED and exchange encrypted file/folder through any public nerwork securely by Right-Clicking or Drag & Drop：
1.本机文件加解密.
2.网盘、云盘文件加解密.
3.一对一、一对多加密文件共享、传递.
4.支持邮件、QQ、微信、网盘、云盘等各类网络传输.
